Price range: £15.00 through £50.00 ex. VAT

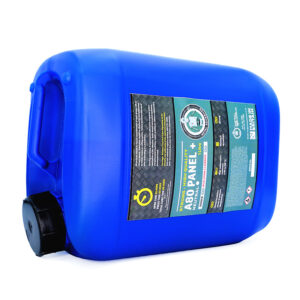

Flowing, spreadable Panel Adhesive. Bonds insulation panels and laminate construction.
Insulation & Laminate
Designed for applications where excellent adhesion to a wide variety of substrates is required.
It can be applied by roller or bead and is ideally suited for panel lamination which are widely used in many industries including: caravan, cold store panels, refrigerated vehicles, curtain walling, portable buildings, insulated door panels and architectural cladding.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Cartridge Size: | 1kg, 5kg |
| Colour | Neutral |
| Working time | Open Time: 30 Mins Press Time: 60 Mins |
| Fixture time | Total Cure Time: 90 Mins @ 20°C |
| Type | Bonder |
| Temperature Resistance | High (-40°C to +130°C) |
| Strength | High 4 |
Coverage (per side): Between 3 and 12m./Kg. This is dependent on the substrates being bonded, porosity and uniformity of them. Only one side of application required.
Substrate Preparation: All surfaces should be free of contamination by dust, grease, oils or release agents. Substrates should be checked for contamination by mould release or cutting agents. Metals should be degreased prior to bonding. Cleaning solutions, if used, must be allowed to evaporate before application of the adhesive. Some metals (untreated aluminium and galvanised steel) may require priming to achieve a satisfactory permanent bond.
Bonding Range and Pressure: A80 Panel+ should be used as it is supplied; it cures by reaction with moisture from the atmosphere or from the substrates being bonded.
To obtain 100% relative humidity it is recommended to spray 7 –10% water onto the adhesive.
All panels or composites should be held together throughout the curing process. This is best accomplished in a press with up to 10 psi pressure, however this will depend upon the strength of the substrates and the core materials used.
Refer to the technical data sheet for further information.
